Remove connecting thing areas from complex polygon.

wrijs
Contributor
Forum|alt.badge.img+5
  • wrijsContributor
  • Contributor

Hi there, I am working on a data clean up model. Many thin areas and remnants have been cleaned up but I can't figure out how to this last thing.

There are some thin areas that connect on both sides to a large and very complex polygon. (See image)

Does anyone have a suggestion for how to remove these type of areas? So only the thin parts have to be removed.

Best answer by takashi

Hi ​@wrijs ,

This could work depending on the condition.

  1. Snapper (Snapping Type: Segment Snapping) : Modify the boundary lines in the thin parts to completely collinear lines - a kind of self-intersection.
  2. GeometryValidator (Issue to Detect: Self-Intersections in 2D) : Detect and remove the collinear lines to repair the polygons.
View original
1 Attachments
    danilo_fme
    crutledge
    raghavendrans
    3 people upvoted this
    • danilo_fme
      danilo_fme
    • crutledge
      crutledge
    • raghavendrans
      raghavendrans
    Did this help you find an answer to your question?
    <strong>This post is closed to further activity.</strong><br /> It may be a question with a best answer, an implemented idea, or just a post needing no comment.<br /> If you have a follow-up or related question, please <a href="https://community.safe.com/topic/new">post a new question or idea</a>.<br /> If there is a genuine update to be made, please contact us and request that the post is reopened.

    3 replies

    crutledge
    Influencer
    Forum|alt.badge.img+33
    • crutledgeInfluencer
    • Influencer
    • May 13, 2025

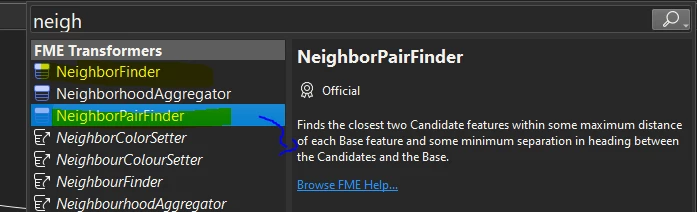

    ​@wrijs Would one of the NeighbourFinder tools work in this case? If you know the minimum gap between the polys this should work. Or finding the Longest Edge.
