Translate AutoCAD block names to Esri shapefile


Forum|alt.badge.img

This should be a dead easy translation, but unfortunately I use FME only one or two times a year, and I’ve been too lazy to take enough time to read the documentation and become more proficient.

I have several hundred AutoCAD drawing files that I need to extract data from three feature types:

  • linework on layer R-UTIL-CATV-LINES
  • blocks on layer S-UTIL-CATV-SYM: all I want are the insertion points and the block name at each insertion point
  • blocks on layer S-UTIL-ELEC-SYM: again, just insertion points and the block name

The target writer type is Esri shapefile. I can get the geometry of the lines and the block insertion points, but I cannot get the block name no matter what permutations of translation parameter that I try. I have looked through the forum postings, but apparently this is one of those FME 001 translation types that is supposed to be self-evident. I will accept the fact that I’m a lazy ignoramus, but I would really appreciate a solution for getting those block names. Here is a link to a sample file (sorry, I can't figure out how to add an attachment-- nothing happens when I click on the 'Attachments' link).

Rudy Stricklan

Best answer by andreaatsafe

Hi @rudystricklan,

Unfortunately I was unable to download your source file.

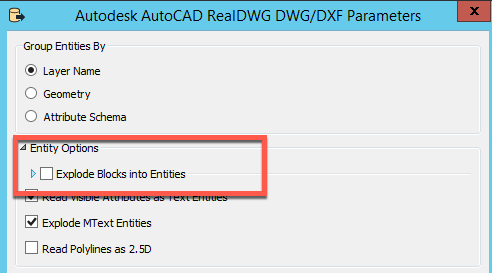

To preserve block insertion points, you can uncheck the "Explode Blocks into Entities" so that you have just the insertion point:



We also have a tutorial for preserving block entities, going from DWG to shapefile, I think this example will assist you in setting up your workflow.

If you are still not getting the results you are looking for, could you attach your workspace (saved as a template which will include your source data)?

View original
Did this help you find an answer to your question?

2 replies

Forum|alt.badge.img

Maybe this will help some other poor dolt. Since all I'm looking for are points, I decided to just write out to a csv file. That exercise reminded me how complicated the permutations are for FME reader parameters, though.

If I specify exploding bock entities and check "Preserve Insert Points", then what I get as an output is this:

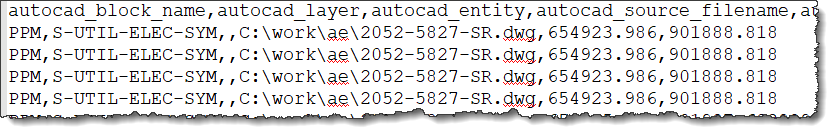

i.e., no insert coordinates. But if I check the "Store Insert Location on Components", then I do get the insert coordinates:

OK, they are repeated three time I guess for good measure. At that point I can import the data into PostGIS and delete the dupes.

I know I'm being whiney, but it's these sorts of things that make FME less than intuitive. I suppose that's part of trying to pare down a semi-infinite number of reader options.


andreaatsafe
Safer
Forum|alt.badge.img+12
  • Safer
  • Best Answer
  • March 21, 2019

Hi @rudystricklan,

Unfortunately I was unable to download your source file.

To preserve block insertion points, you can uncheck the "Explode Blocks into Entities" so that you have just the insertion point:



We also have a tutorial for preserving block entities, going from DWG to shapefile, I think this example will assist you in setting up your workflow.

If you are still not getting the results you are looking for, could you attach your workspace (saved as a template which will include your source data)?
