Hi Experts
Need your support and Guidance.
I was having p scanned PDF and exported a page of the map which was of 1984 and I need to extract the Points with location details with size of each point size so that i can differentiate them based on that.
Main challenge is how to georefence it and I have vector file for the province and Extent and 30 M grid i was able to secure that but How can i proceed to georeference and get the details.
Kindly Guide and support.
I have attached the Image file with GDB of it
https://drive.google.com/file/d/1SZXkbyDlMxL_cE0FPsiHKuuECl7k6HrW/view?usp=sharing
Thanks
Solved
Scan PDF exported non spatial -Image file - Georeerence and extract the points with the size of the colour available
+9- Supporter
Best answer by danilo_fme
Hi

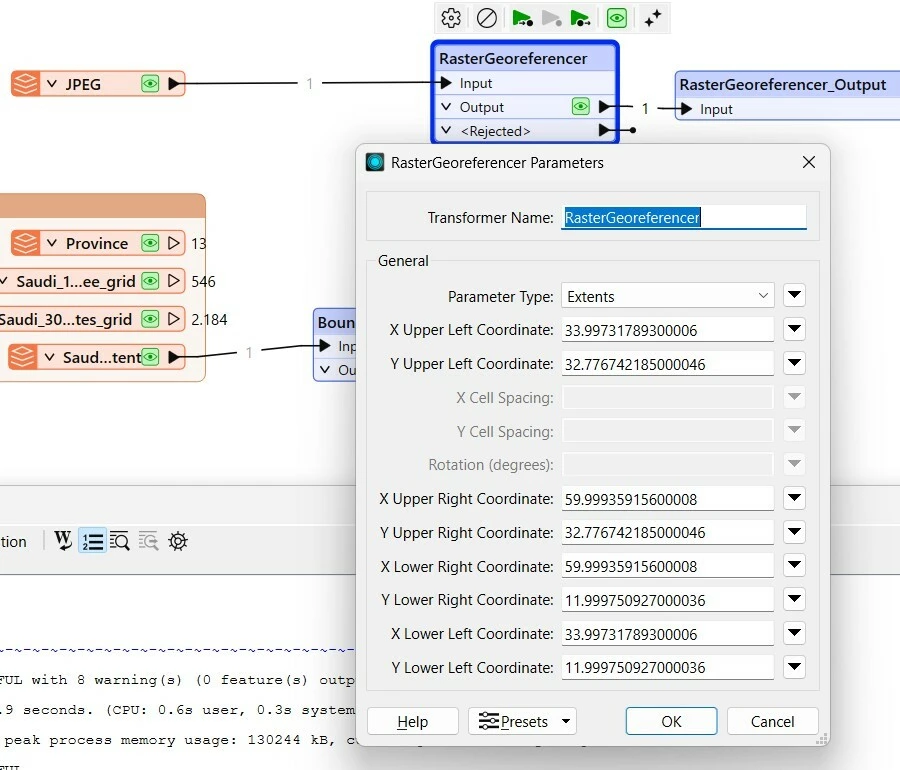

I used the transformer RasterGeoreferencer in your source JPG:
Thanks in Advance,
Danilo
This post is closed to further activity.
It may be an old question, an answered question, an implemented idea, or a notification-only post.
Please check post dates before relying on any information in a question or answer.
For follow-up or related questions, please post a new question or idea.
If there is a genuine update to be made, please contact us and request that the post is reopened.
It may be an old question, an answered question, an implemented idea, or a notification-only post.
Please check post dates before relying on any information in a question or answer.
For follow-up or related questions, please post a new question or idea.
If there is a genuine update to be made, please contact us and request that the post is reopened.
+9- Supporter
and experts
need support n suggestions of expertise.
I shall be thankful to u
+53- Celebrity
- Best Answer
Hi
I used the transformer RasterGeoreferencer in your source JPG:
Thanks in Advance,
Danilo
Partner Solutial Brazil - www.solutial.com.br
+64

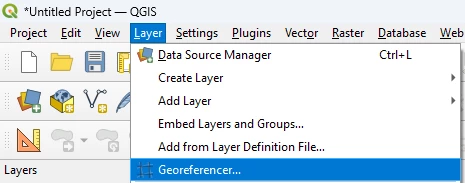

This is not something I would fix using FME. For georeferencing my go to tool is QGIS, it has a great georeferencing tool.
Buckle your seatbelt Dorothy, cause Kansas is going bye-bye...
+9- Supporter
thank you for the response.
I have like many images in bulk so that the I was trying to find a solution through FME .
If it was like few then I would have opted the ArcGIS Pro or QGIS
+9- Supporter
Hi
I used the transformer RasterGeoreferencer in your source JPG:
Thanks in Advance,
Danilo
Thank you
Source to georeference them using extent layer because. Location is actually Saudi Arabia .
Need your kind guidance to resolve it.
thank you once again
+64How many prints are we talking about? 10? 100? 1000? 10.000? 100.000? To get an idea how much effort it would be to do it manually and when automating things will pay off.
Are all scans exactly the same? Can we find the transformation for one print and use it for all prints?
If not, is the layout the same? The quality, the grid, the degrees on top and on the right.
If so, you might be able to isolate the grid, OCR the numbers, match the numbers to the grid and go from there. It is not impossible, but it will take some work.
+9- Supporter
Thank you for your kind support
Let me elaborate in more detail
There are about 1K scanned pdfs that we are converting to img/ tiff and then georeference with same extent and having same grid for all.
The Goal is to georeference and then extract the lat/lon values for the color points based on their size like available in the attach map in blue and red in the provided link.
thank you
+64Then do one print manually, find the coordinates of the corners and then use the RasterGeoreferencer as
Buckle your seatbelt Dorothy, cause Kansas is going bye-bye...
+9- Supporter
Ok cool understood for georeference and then how can get the lat n kin value with the size and color so that I can differentiate then.
any suggestions on this
+64I’m not sure if this is the best way to do it, but what I would try is to use the RasterExpressionEvaluator (which is a b!tch to configure) to set all pixels which are not data to nodata. Then use the RasterCellCoercer with ignore nulls to get the areas from the pixels and go from there.
