I was wondering if anyone has any ideas on how I would approach the below problem.

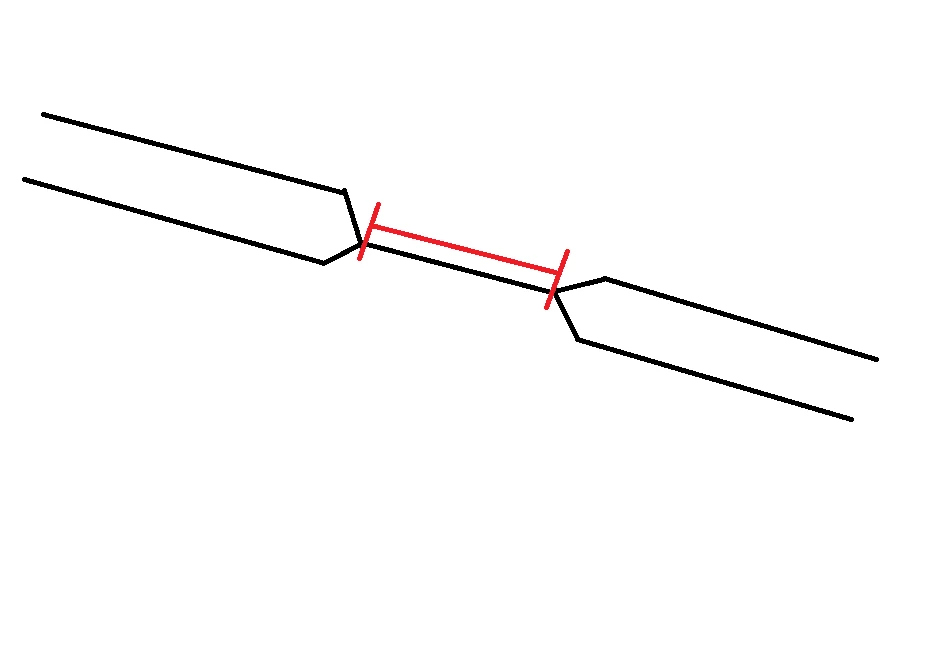

I have a road network where there are short single carriageway centerlines of short distances between dual carriageways. I want to identify where there is a break between dual carriageways that is less than x meters. The image below shows a simple example and it is the geometry highlighted in red which I want to identify.
Best answer by jdh
There are a couple of different options.
A) You could use a spatialRelator with the single carriageway segments as the requestor and the dual carriageway as the supplier and either touches or intersects as the predicate. If the _related_candidates is 4, that would be the above case.
B) You could use a neighborFinder with the single carriageways as the Base and the Dual carriageway as the candidate, generate the close candidate list, and you can count how many elements there are.
C) You can use a topologyBuilder, and examine the nodes to see which ones contain both a single and dual carriageway, join the resultant nodes back on the edge (based on fme_arc_id) and see which single carriageway edges share both nodes with dual carriageways.
In all three cases you can use a Length Calculator to determine the segment length.
+37
+37There are a couple of different options.
A) You could use a spatialRelator with the single carriageway segments as the requestor and the dual carriageway as the supplier and either touches or intersects as the predicate. If the _related_candidates is 4, that would be the above case.
B) You could use a neighborFinder with the single carriageways as the Base and the Dual carriageway as the candidate, generate the close candidate list, and you can count how many elements there are.
C) You can use a topologyBuilder, and examine the nodes to see which ones contain both a single and dual carriageway, join the resultant nodes back on the edge (based on fme_arc_id) and see which single carriageway edges share both nodes with dual carriageways.
In all three cases you can use a Length Calculator to determine the segment length.
There are a couple of different options.
A) You could use a spatialRelator with the single carriageway segments as the requestor and the dual carriageway as the supplier and either touches or intersects as the predicate. If the _related_candidates is 4, that would be the above case.
B) You could use a neighborFinder with the single carriageways as the Base and the Dual carriageway as the candidate, generate the close candidate list, and you can count how many elements there are.
C) You can use a topologyBuilder, and examine the nodes to see which ones contain both a single and dual carriageway, join the resultant nodes back on the edge (based on fme_arc_id) and see which single carriageway edges share both nodes with dual carriageways.
In all three cases you can use a Length Calculator to determine the segment length.
