Can I read the xdata of property sets of dwg blocks?

  • December 20, 2021
  • 4 replies
  • 110 views

rudewi
Participant
Forum|alt.badge.img

pset_screenshotHi. I'm reading dwg files with the civil 3D reader. I need to use the attributes in the propertysets. this works perfectly with exposing 'autocad_xrecord_datalist' in the reader for all geometry types, but not for the blocks. the property set attributes from the block don't seem to be present on the 'autocad_insert'.

I tried exposing fme_attrib_info but they are also not there. any ideas? or is this just not possible on blocks ?

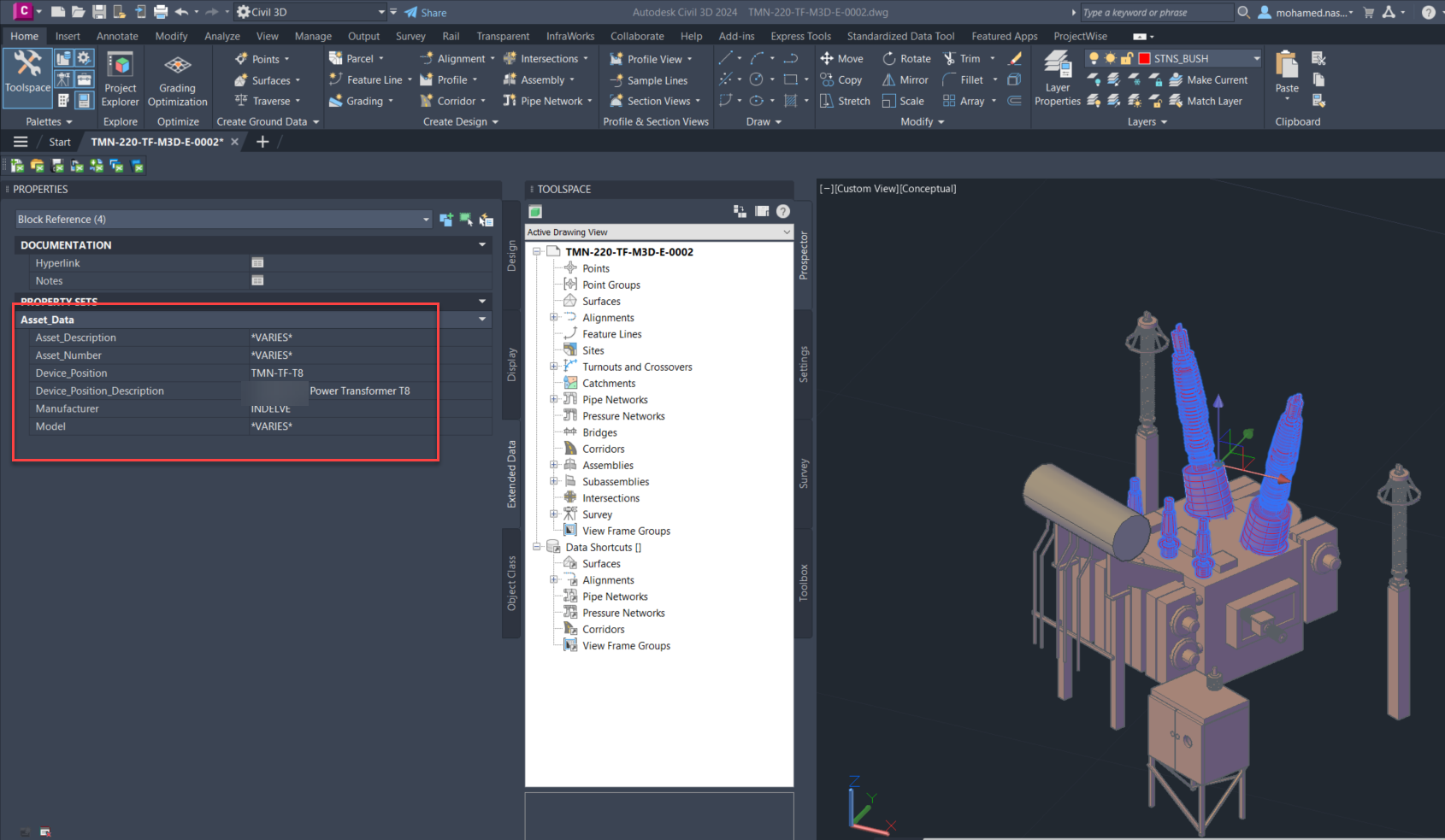

i added a screenshot of the pset in the dwg

Best answer by jovitaatsafe

Hi @rudewi​,

Great question! Support for reading property sets on DWG blocks was recently added and currently available on our FME 2022.0 beta that you can find in our downloads here: https://www.safe.com/support/downloads/#beta

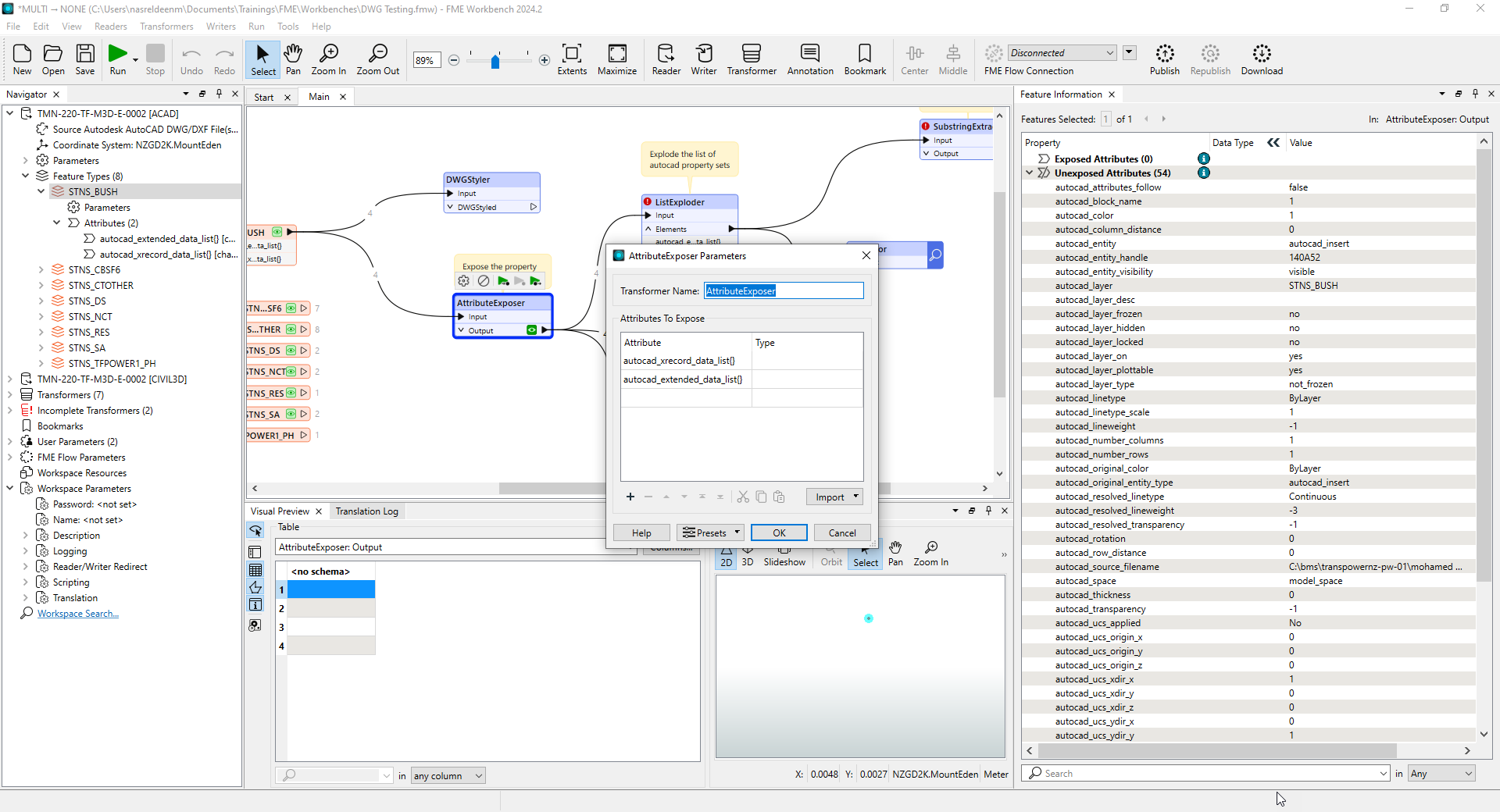

Property sets should show up in fme_attrib_info{}.field_name and fme_attrib_info{}.field_value in the Feature Information Window when inspected that you can then expose in the AttributeExposer to work with.

View original
Did this help you find an answer to your question?

4 replies

jovitaatsafe
Safer
Forum|alt.badge.img+11
  • Safer
  • Best Answer
  • December 20, 2021

Hi @rudewi​,

Great question! Support for reading property sets on DWG blocks was recently added and currently available on our FME 2022.0 beta that you can find in our downloads here: https://www.safe.com/support/downloads/#beta



Property sets should show up in fme_attrib_info{}.field_name and fme_attrib_info{}.field_value in the Feature Information Window when inspected that you can then expose in the AttributeExposer to work with.


rudewi
Participant
Forum|alt.badge.img
  • Author
  • Participant
  • December 20, 2021
jovitaatsafe wrote:

Hi @rudewi​,

Great question! Support for reading property sets on DWG blocks was recently added and currently available on our FME 2022.0 beta that you can find in our downloads here: https://www.safe.com/support/downloads/#beta



Property sets should show up in fme_attrib_info{}.field_name and fme_attrib_info{}.field_value in the Feature Information Window when inspected that you can then expose in the AttributeExposer to work with.

thank you for this answer I'll check this out


rudewi
Participant
Forum|alt.badge.img
  • Author
  • Participant
  • December 21, 2021
jovitaatsafe wrote:

Hi @rudewi​,

Great question! Support for reading property sets on DWG blocks was recently added and currently available on our FME 2022.0 beta that you can find in our downloads here: https://www.safe.com/support/downloads/#beta



Property sets should show up in fme_attrib_info{}.field_name and fme_attrib_info{}.field_value in the Feature Information Window when inspected that you can then expose in the AttributeExposer to work with.

it works nicely in the 2022.0 Beta. any idea when this version will be production ready?


jovitaatsafe
Safer
Forum|alt.badge.img+11
rudewi wrote:

it works nicely in the 2022.0 Beta. any idea when this version will be production ready?

@rudewi​, Glad to hear it's working for you! The FME 2022.0 release is currently aimed for early March.
