How to extract coordinates of start and end line and get the relates id of each point (start/end)

  • December 1, 2023
  • 9 replies
  • 854 views
gogopotter90
Contributor
Forum|alt.badge.img+14

Hello ,

i am confused in my workspace .

i would like to extract the coordinates of start point and end point of the lines .

So I used coordinates extractor index 0 , and other coordinates extractor index -1 .

so I got the coordinates .

but how I know , this coordinates belong for which point id ( I mean which side of line is start and which side is -the end ) and depends on what ?

my target to get the coordinates and the relates points id to it .

I would like to get theses attributes

ID line | id point start | coordinates (x)start | coordinates (y) end | id point end |coordinates (x) end |coordinates (y) end

as example .

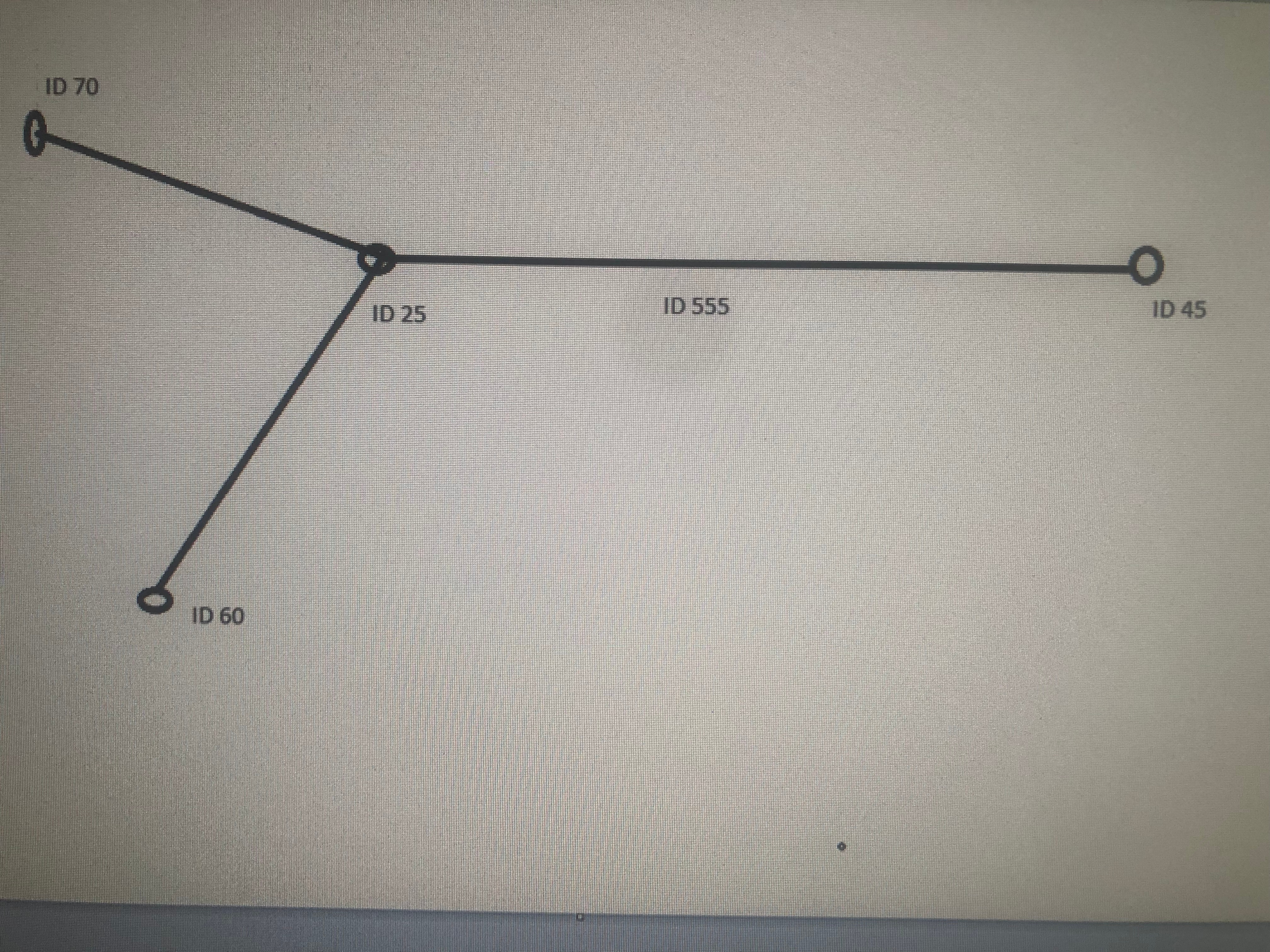

see picture , I need to extract the coordinates of each line ( start and end ) and know which id of the point that relates to this coordinate

Fme 2021



Best answer by takashi

This is was my problem .

i have did what u do before but I was so confusing .

I have the points id ,you are right

i will exapling in Details .

i know the start point id and end point id

and I have added a list on the line

so the line has now more details ,about the point that it connects with .

id line , id point a ,id point b

later after I use 2 vertex creator and find points by neighbour finder .

how to merge them with 2 point id at the same Line ?

i am really confusing about it .

Bcs as example

i have 3 end line ( points id ) are the same id .

so when I do merge May be ,coordinates go to wrong line .

when the id is the same .

(the id is same at some end lines Bcs I have used buffer and cut the lines that connect together in one point

so instead of one point ,I have different point include same point id .

please , id U can provide me with temperate solution .or screenshot ,will be better for me to get clear ur solution .

thanks a lot in advanc
