Is there a method to import CAD graphic elements, line, Arcs, etc. with the geometric attributes readable by Arc map such as Radius of arcs, bearings of lines. When I import CAD graphics, I get polylines, but they do not really have readable geometry like Line Length, Arc Radius, Line Bearing etc. I would like to import CAD graphics like road centerline geometry and have the geometric data in a Table like format, similar to the old COGO formats.
Question
MicroStation geometry
+30- Safer
Hi

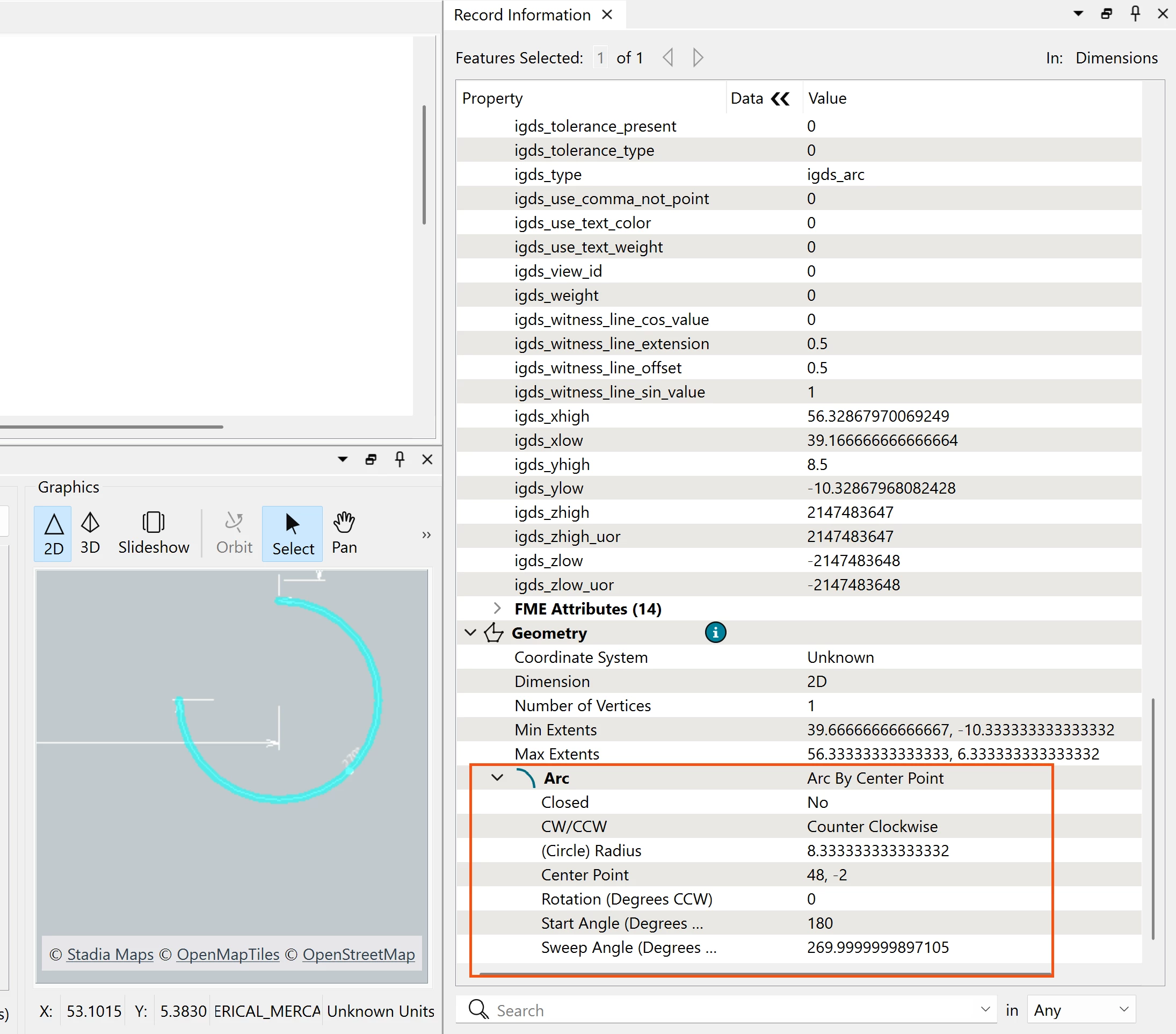

The Arc Radius will be displayed in the Record (or Feature) information window on the left side of the canvas.

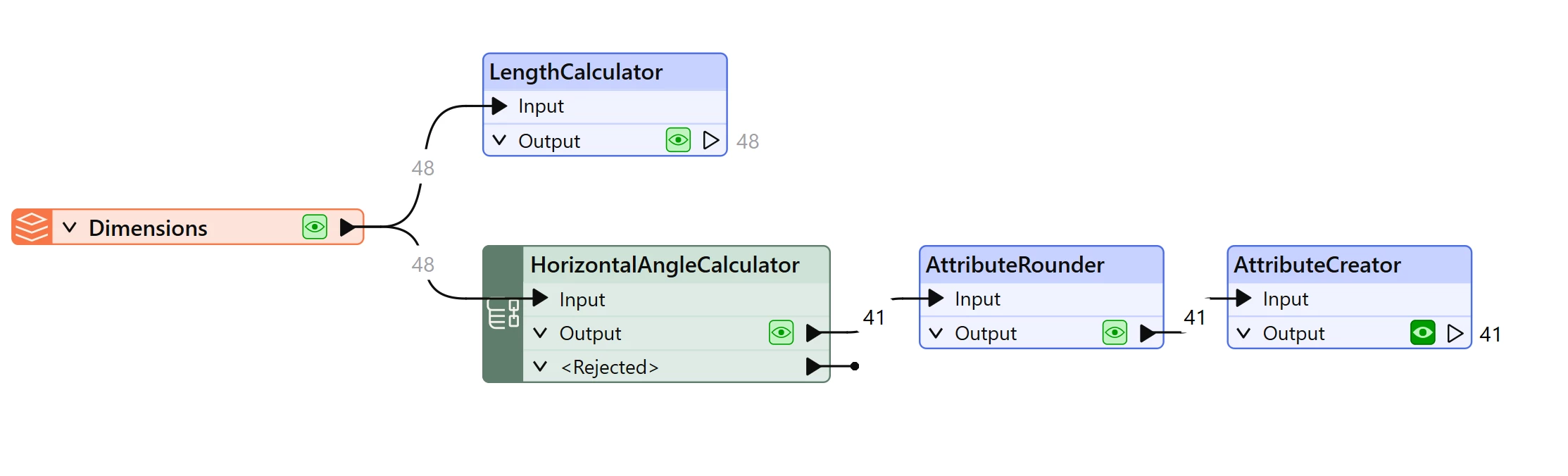

To see the line length, you can use a LengthCalculator transformer.

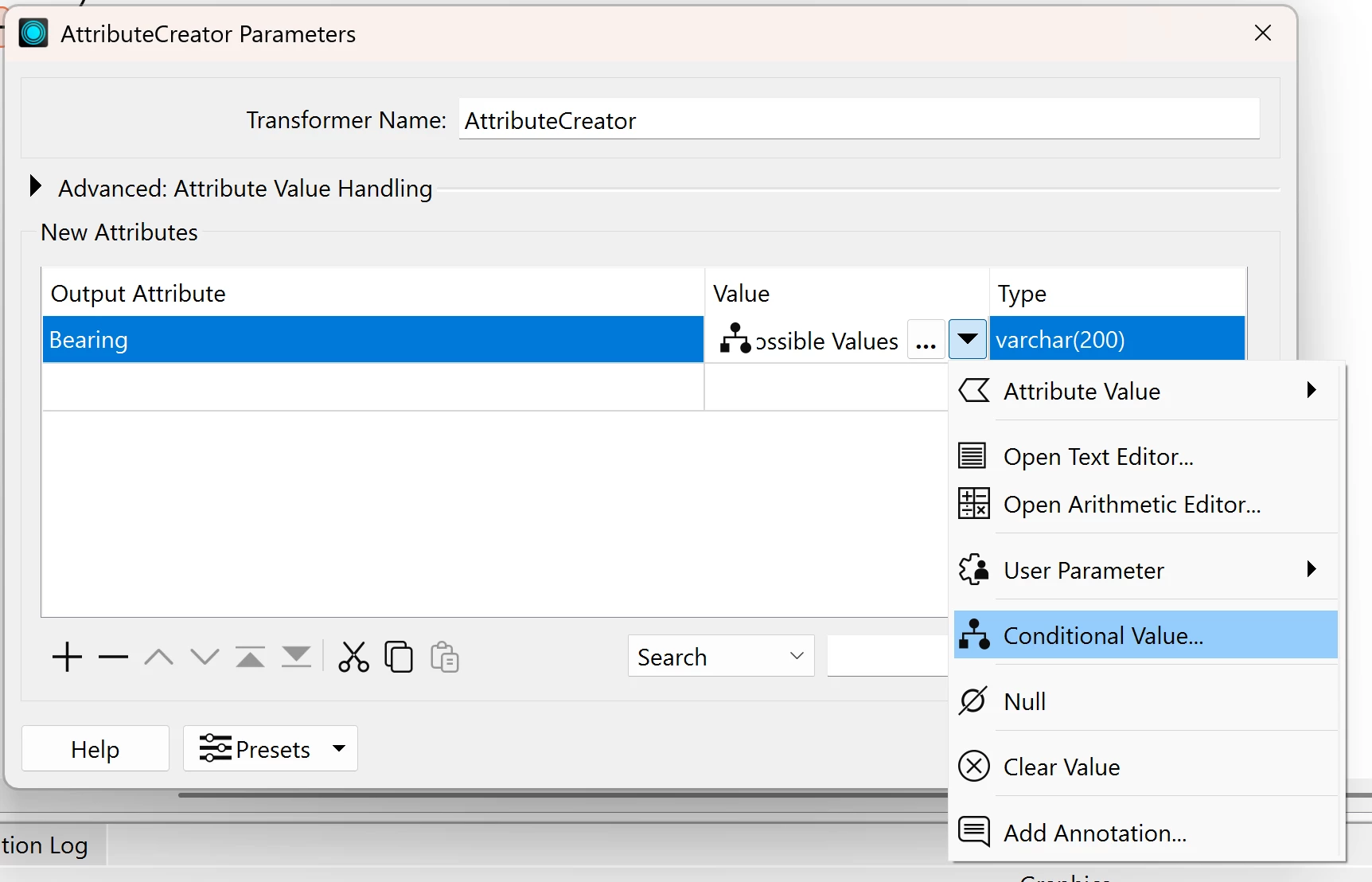

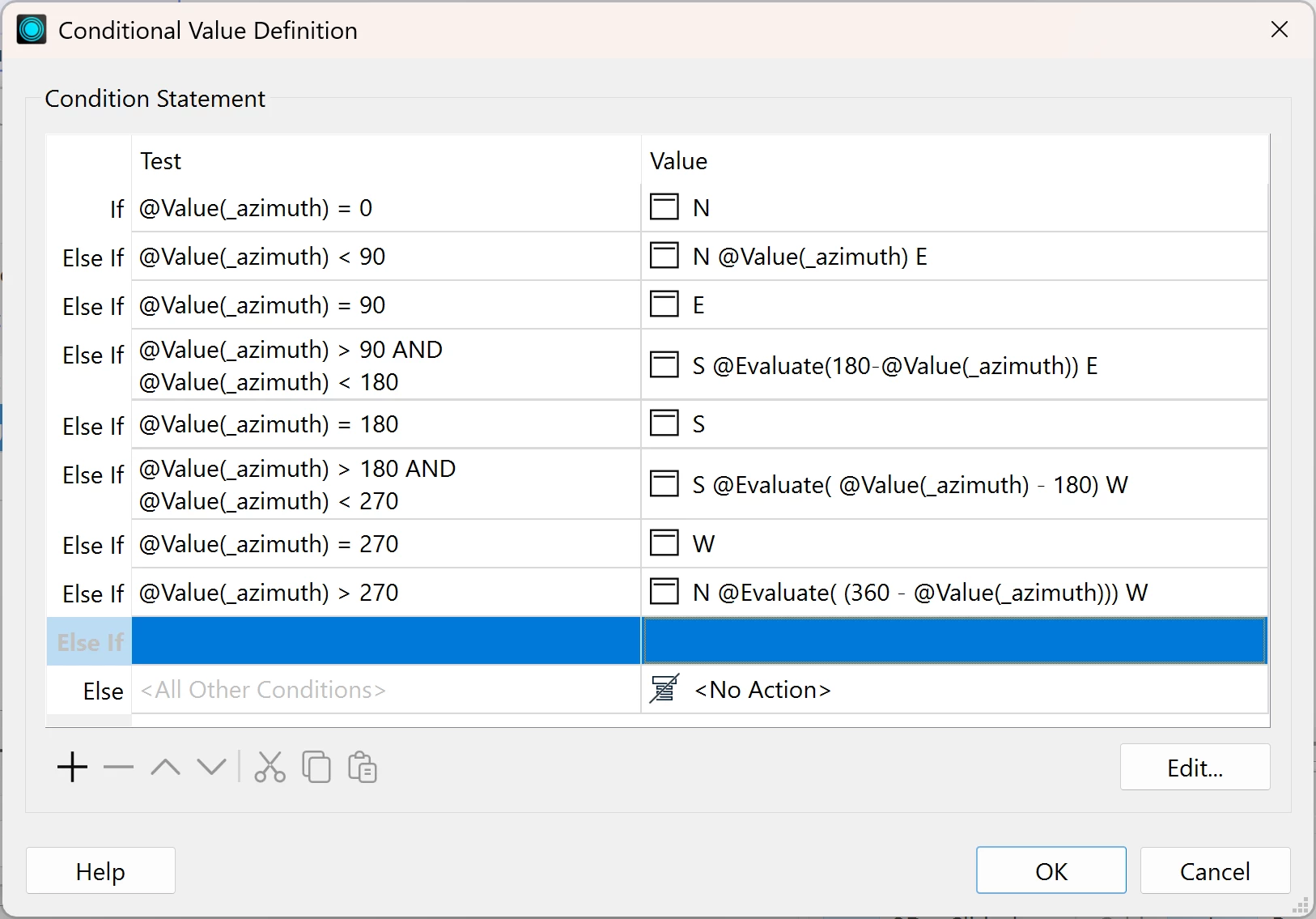

To find the line bearing, you can use the HorizontalAngleCalculator, which will tell you the azimuth. If you want to find the bearing, use an AttributeCreator to create a new bearing attribute and you can set it up similar to this.
You can use an AttributeRounder before the AttributeCreator to round the _azimuth attribute.
We have a tutorial series on Microstation Transformations that you may find helpful: Tutorial: Microstation Transformations.
