I have a lot of polygons that represent buildings and I want to rasterise them but before I do I need all the polygons to be parallel to the horizon. I need to create a tool that calculates the polygon angles and then use these angles to rotate the buildings accordingly.
Solved
Calculate polygons angles to horizon
+2- Contributor
Best answer by DanAtSafe
Hi
which uses the BoundingBoxReplacer to get the angle of the longest side.
This post is closed to further activity.
It may be an old question, an answered question, an implemented idea, or a notification-only post.
Please check post dates before relying on any information in a question or answer.
For follow-up or related questions, please post a new question or idea.
If there is a genuine update to be made, please contact us and request that the post is reopened.
It may be an old question, an answered question, an implemented idea, or a notification-only post.
Please check post dates before relying on any information in a question or answer.
For follow-up or related questions, please post a new question or idea.
If there is a genuine update to be made, please contact us and request that the post is reopened.
+2- Contributor
Hi,
here I uploaded some buidlings which I want to calculate the dominant angles and use them to rotate the buildings to get them horizontal.
thanks in advance
+21- Safer
- Best Answer
Hi
which uses the BoundingBoxReplacer to get the angle of the longest side.
+2- Contributor
Hi @DanAtSafe,
Thank you very much for your support. I will try it and give you a feedback.
+2- Contributor
Hi DanAtSafe,

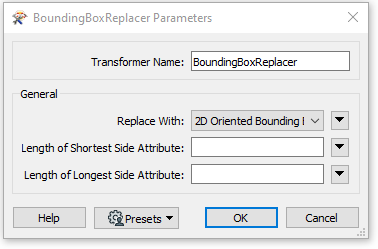

I am using FME 2021.2 and it seems that BoundingBoxReplacer does not have Long Side Angle parameter. When I choose Replace with: 2D Oriented Bounding Box, I got only 2 options (see attached).
any suggestions?
+21- Safer
Hi
Here’s the work-around if you can’t upgrade:
+2- Contributor
Hi
Thank you very much.

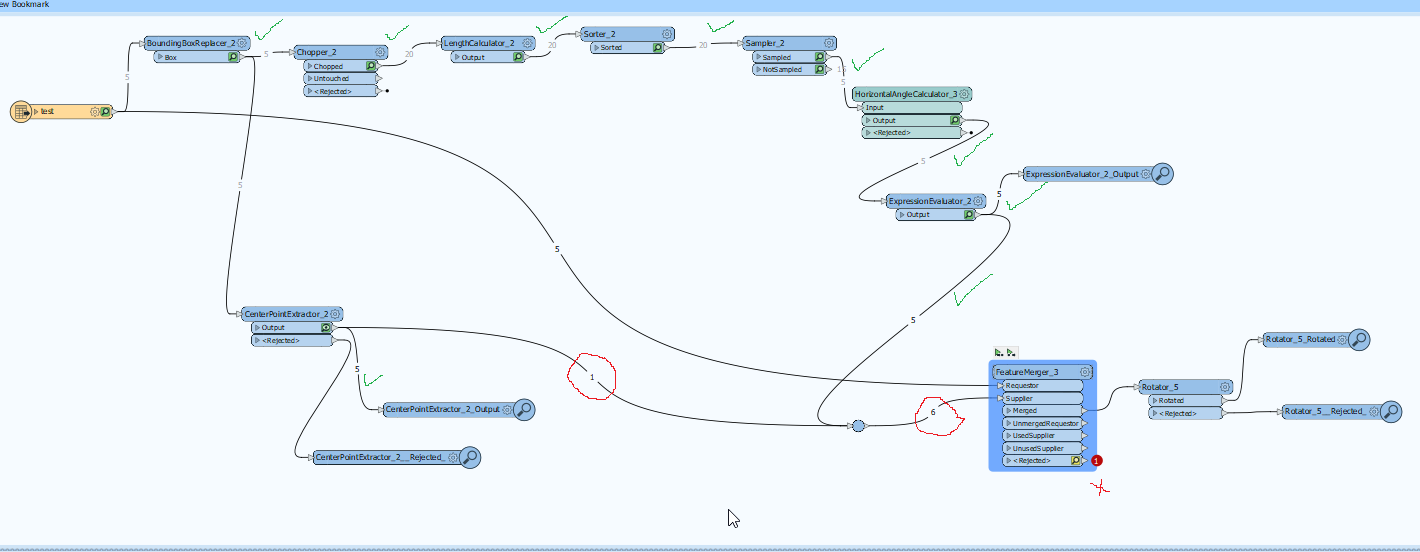

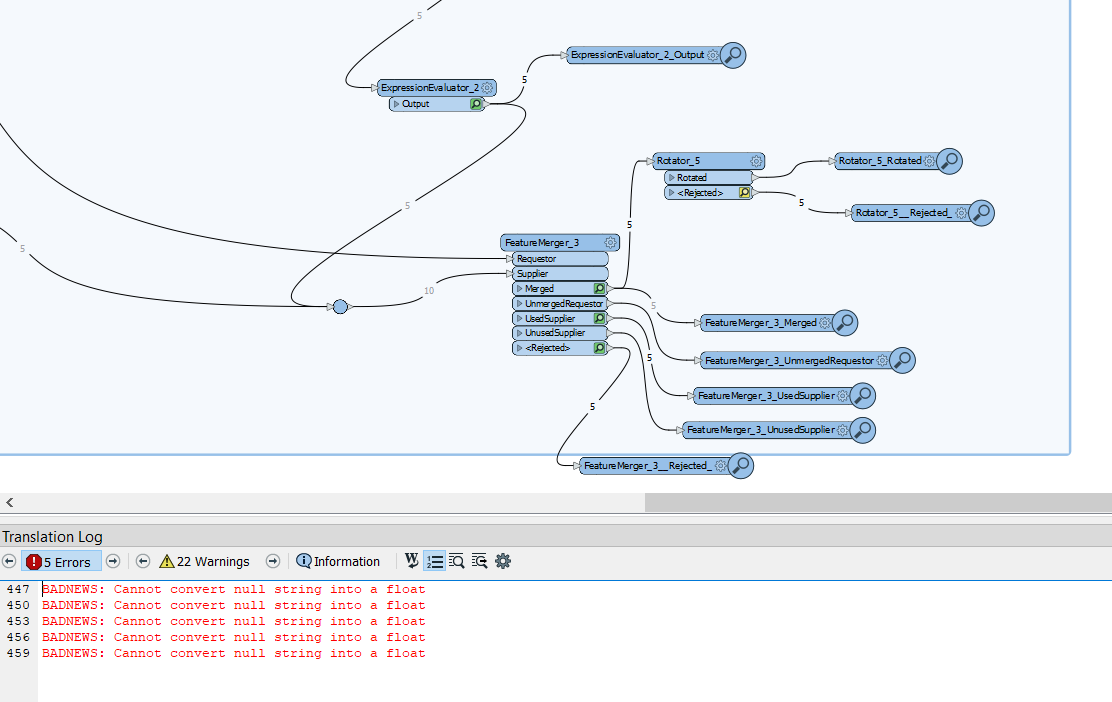

I have used HorizonAngleCalculator instead of AzimuthCalculator (HAC is upgrad version of AC). However, as you can see in the figure attached only one feature of the center points entered the process and finally, I got rejected.
+21- Safer
Hi
+2- Contributor
Hi

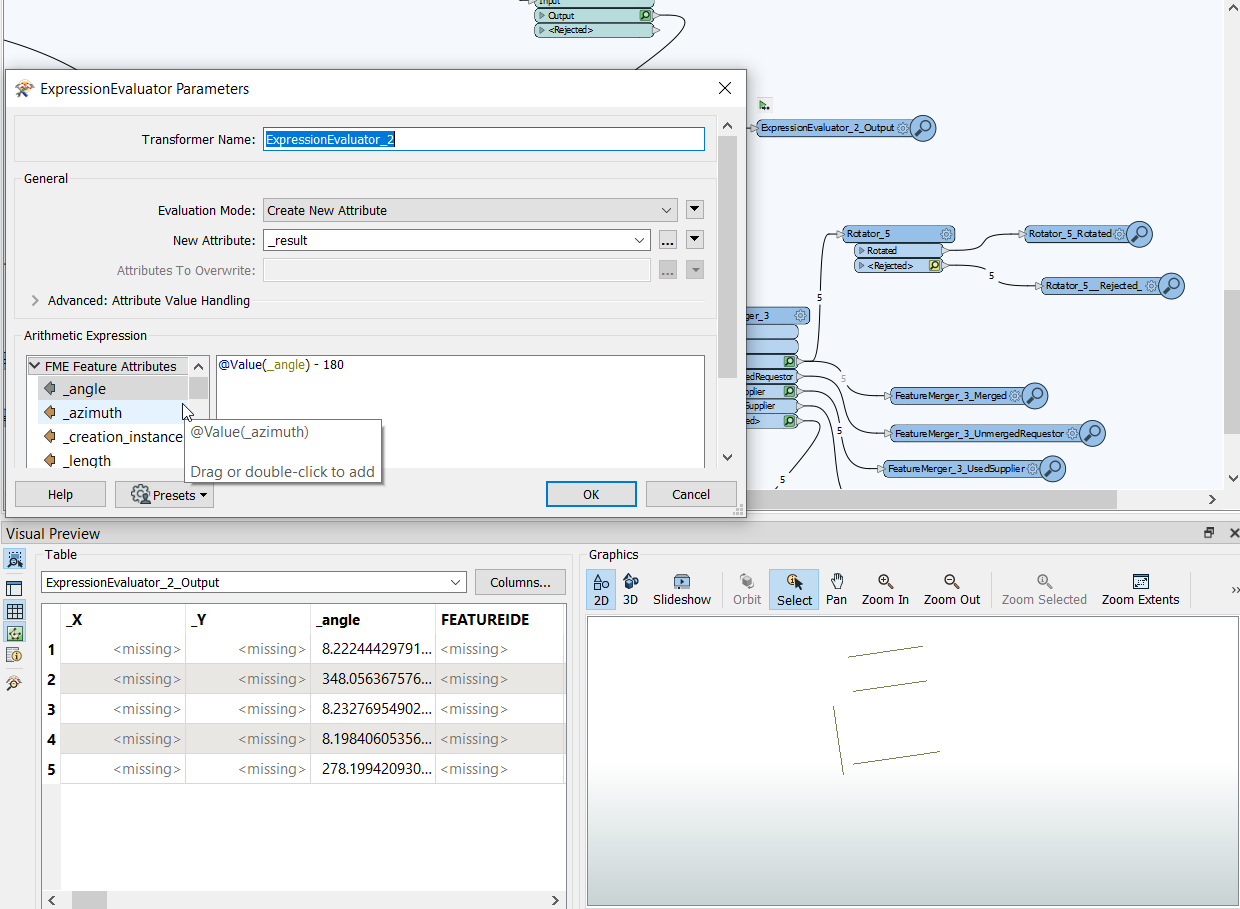

Yes I have changed the ExpressionEvaluator to _angle. Also, I have changed the workspace parameters and I got the results attached.
+2- Contributor
Hi
I did some changes where I have added a “Sorter” and I “FeatureMerger” and now the script works probably.
here is the result
